HANDHELD ANTI-DRONE

Handheld Anti drone are used to intercept unwanted drones and unmanned aerial vehicles (UAVs).Anti drone technology is deployed to protect areas such as airports, critical infrastructure, large public spaces such as stadiums, and military installations and battlefield sites.

antidronegun SkyDefense Antidronegun  are used to intercept unwanted drones and unmanned aerial vehicles (UAVs).Anti drone technology is deployed to protect areas such as airports, critical infrastructure, large public spaces such as stadiums, and military installations and battlefield sites.

OVERVIEW

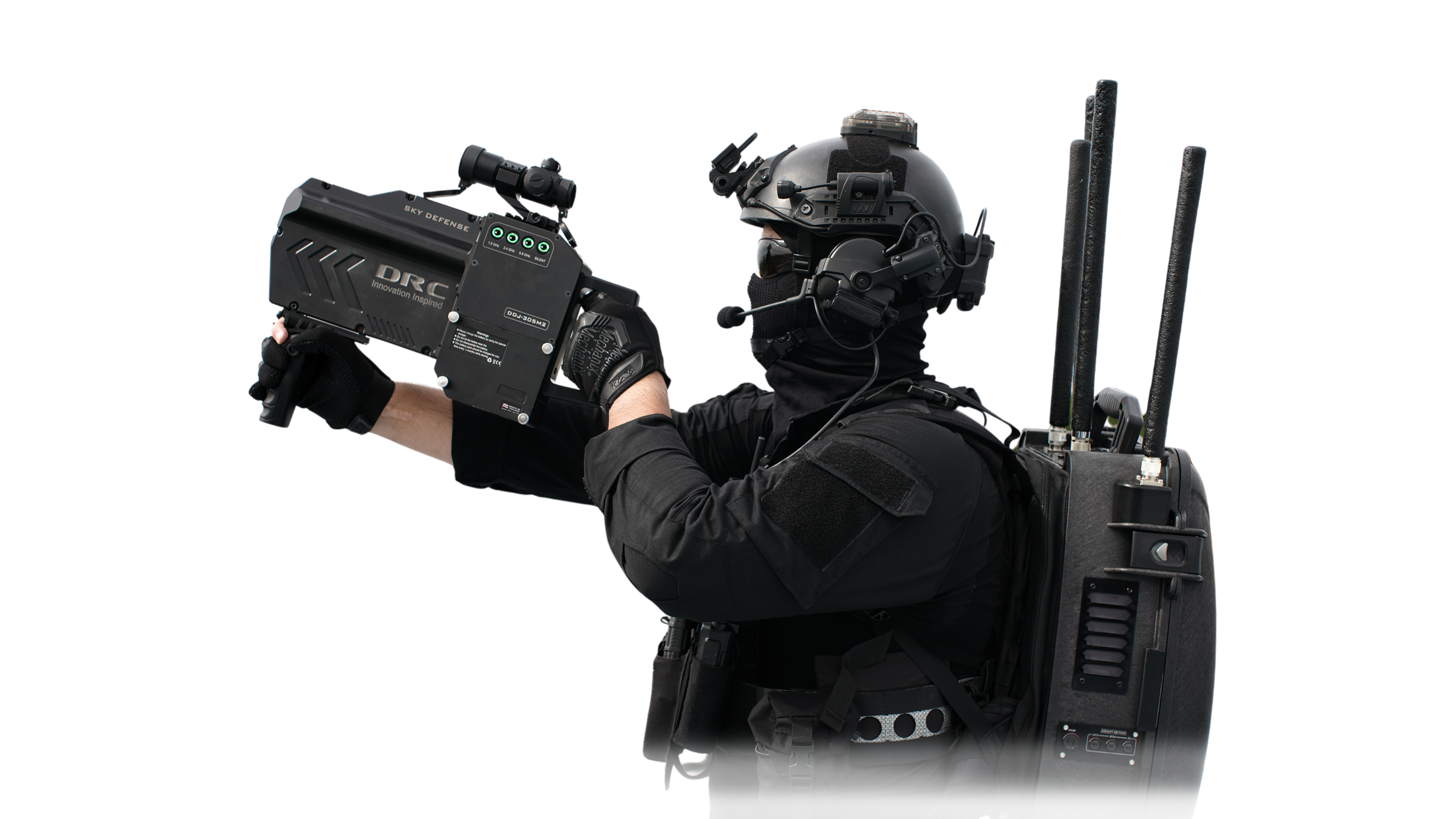

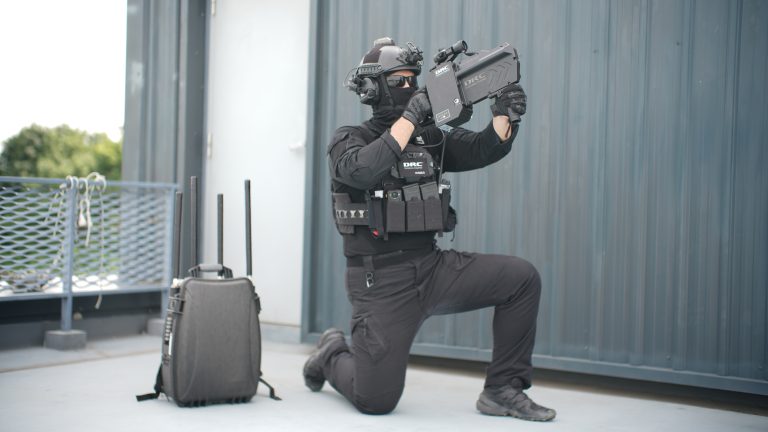

Anti-Drone/UAV designed by Thai engineer team and is applying electronic warfare technology. The microcontroller produces low-power transmitter in multi-frequency to interfere Drone/UAV’s receiver causing Drone/UAV uncontrollable. This Handheld Anti-Drone/UAV is light-weight and portable. Start up time is instant and ready to operate in a target area. It can work with aiming scope for better Drone/UAV identification.

FEATURES

  • Jamming range 1,000 meters
  • Effective jamming frequency covers up to 6 bands
  • Jamming GPS and Drone/UAV control
  • Selectable frequency band or all band jamming
  • Operating Mode both Manual and Auto
  • Durable Aluminium body
  • Lightweight suitable for one man operation
  • Audio & Visual : Warning alarm and LED indicators
antidronegun_drc

SPECIFICATION

Jamming Frequency

Positioning Fequency | 1227.60 MHz (L2), 1575.42 MHz (L1)
Control Frequency | 2400-2500 MHz, 5740-5870 MHz
Control Frequency | 433-435 MHz, 902-928 MHz (Optional)
Optional (The optional frequency bands specified below can be changed as per customers’ requirements.)

Antenna

Integrated type, 11.5 dBi
Beamwidth | Vertical : 25° , Horizontal : 22°

Maximum total power

5 Watts

Safety system

Overheat Protection

Jamming Range

≥ 1,000 meters where distance between drone receiver and drone transmitter is more than 300 meteres

Power Supply

Battery | Li-ion 12 VDC 7.5Ah
Backup time | More than 2 hours
Battery charger included | 220 VAC / 50 Hz

Environment

Operating temperature | 0°C to 70°C
Heat dissipation | Fanless with heat sink

Standard

MIL-STD 810G
MIL-STD 461F/G Radiated Emissions, Electric Field
IP65
antidronegun_drc

AppliCATIONs

Military Base Protection

VIP Protection

Border Protection

Critical Infrastructure Protection
